TRACKED DUMPERS

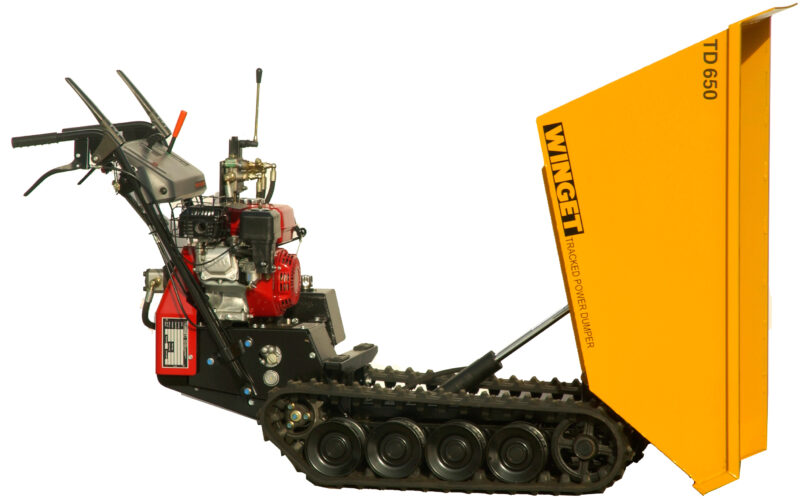

High tip over the side of skips or standard tip at a lower level
Narrow access – only 680mm wide – even fits through doorways
Honda engine and running gear for reliability you can trust
Hydrostatic Drive – smooth forward / reverse up to 4 km/h
Rubber tracks give smooth traction and low ground pressure
Safe to operate – deadmans handles
WINGET is an IS0 9001 certified company
Second to none after sales spares service through WINGET’S Worldwide Distributor Network.

View our range of tracked dumpers below, or contact us if you need any advice.

Skip: Durable steel skip with reinforced welded steel section edges. Hydraulic Tipping. Only 680mm wide.

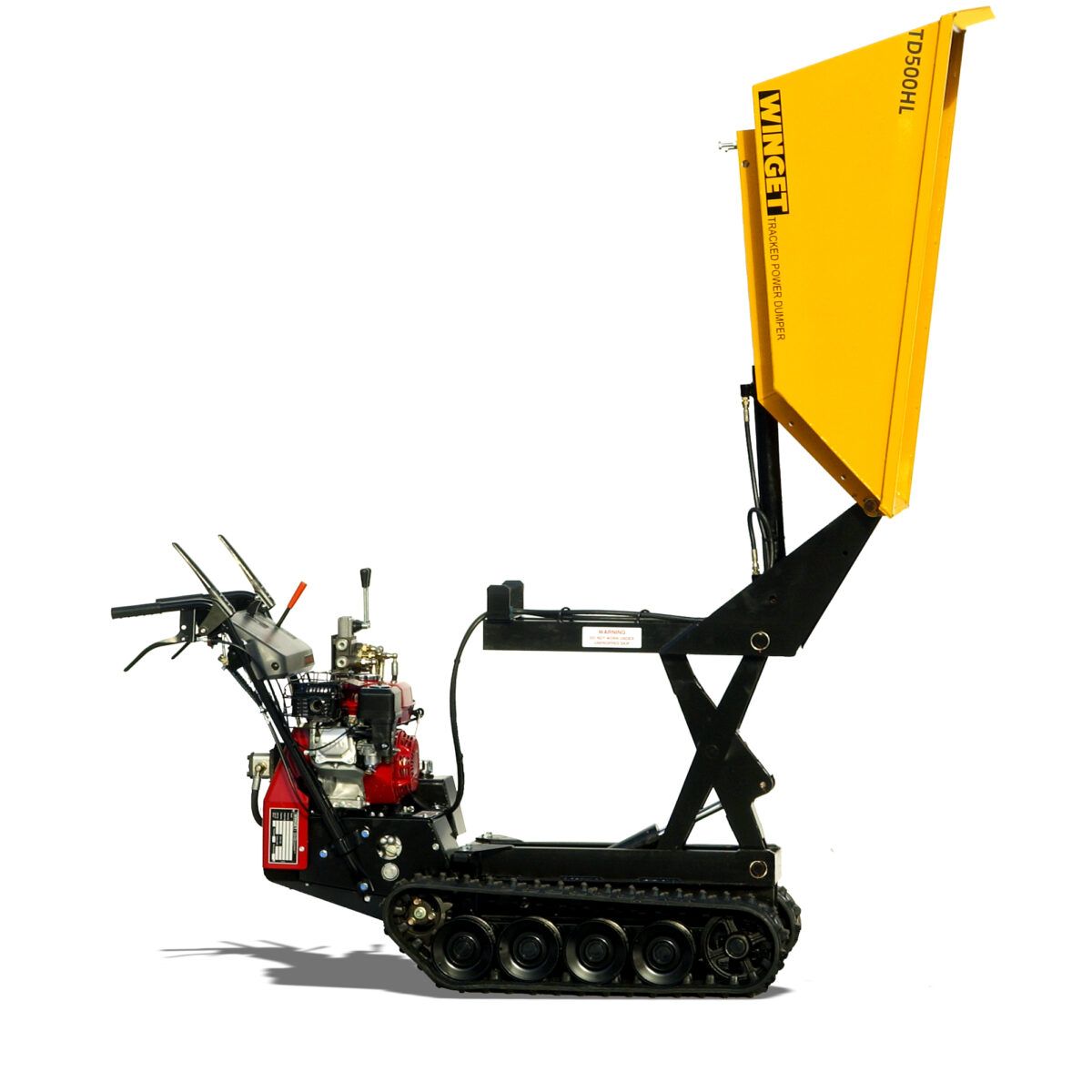

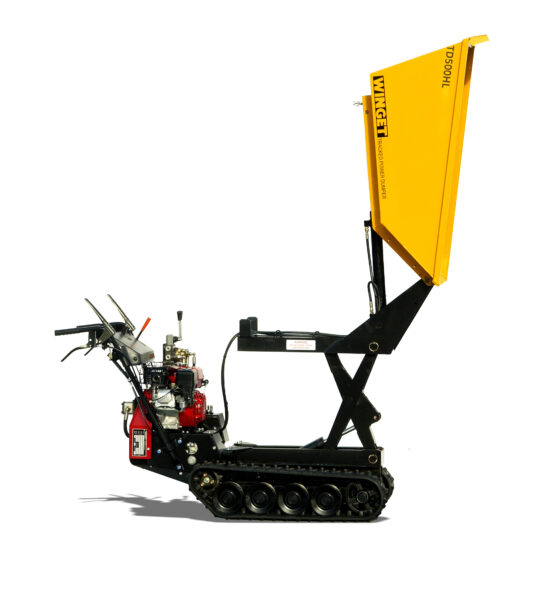

Scissor lift: Hydraulic scissor lift up to 1220mm on high lift model. TD650 tips at 20mm.
Engine: Powerful and efficient Honda GX160 4-stroke OHV engine (5.5hp). Runs on unleaded petrol.
Drive: Hydrostatic drive (no gears) for smooth, controllable forward and reverse operation.
Tracks: Unique tread pattern offers superb traction across varied terrain and gradients, even steps.
Travel speeds: Forward: 0 – 4.3 km/h. Reverse: 0 – 3.6 km/h.
Maximum gradients: Downward: 15 degrees. Upward: 20 degrees.

Brochures

CAPACITIES:
Payload	500kg
Hydraulic Pressure	2500 psi

CAPACITIES:
Payload	650kg
Hydraulic Pressure	2500 psi

We have significant resource available on our site, however if you need further assistance just ‘Ask the Team’
