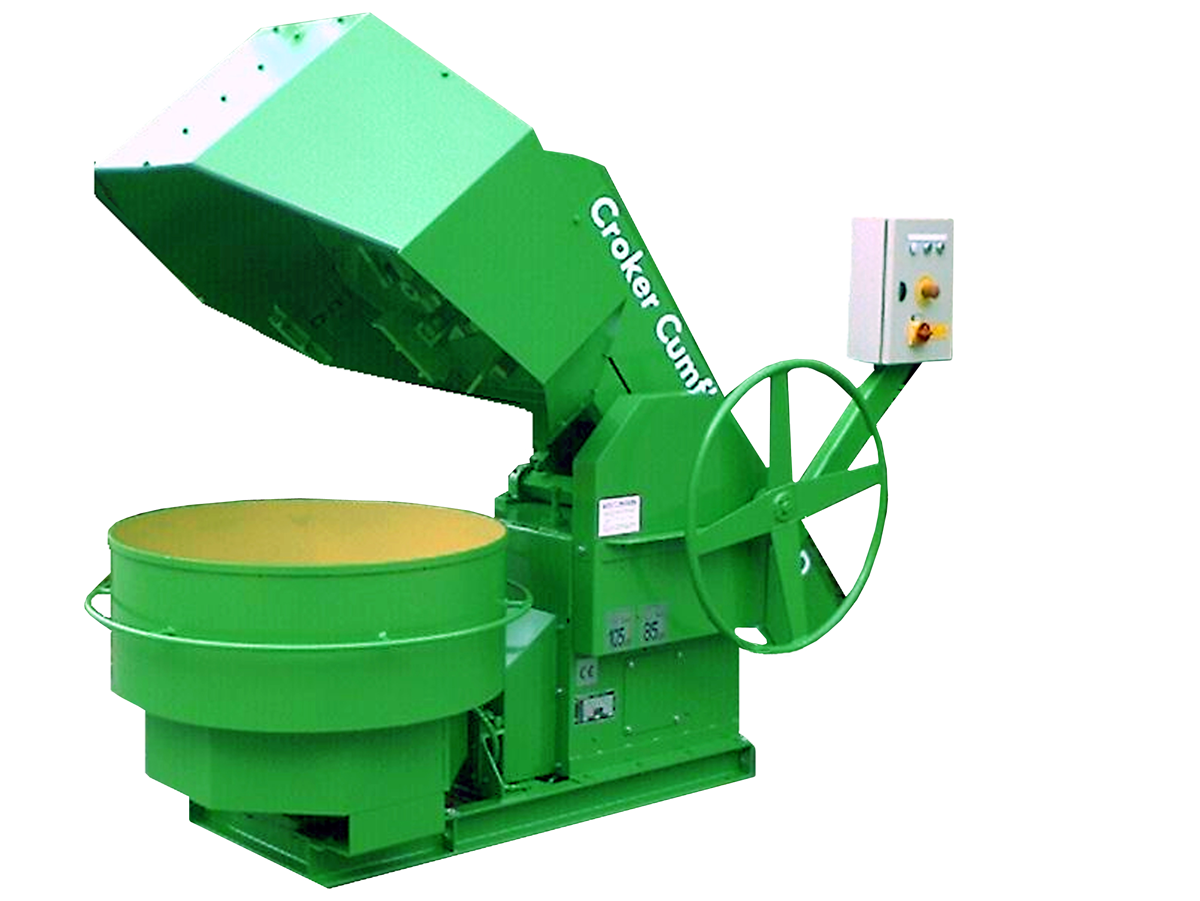

CROKER RP100XD MK2 ROTATING PAN MIXER

CROKER RP100XD MK2 ROTATING PAN MIXER

Enquire

CAPACITIES:
Maximum Batch Capacity 113 Litres/163Kg
Mixing Pan Speed 16rpm
Mixing Star Speed 74rpm
Max Aggregate Size 19mm
POWER UNIT:
Mixing Pan Drive 1.1Kw, 3Ph, 50Hz, 2380/420 volts
Mixing Star Drive 2.2Kw, 3Ph, 50Hz, 380/420 volts
DIMENSIONS:
Overall Length 2530mm
Width 1100mm
Height 1475mm
Overall Height, Star Raised 1727mm
Pan Diameter 900mm
Weight 1000Kg
Category:

Product Enquiry

    Related products

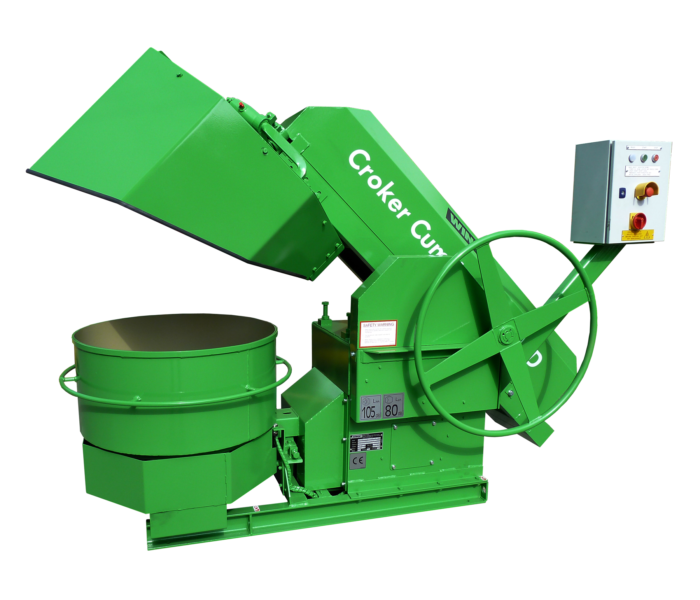

    • CROKER RP50XD MK2 ROTATING PAN MIXER
