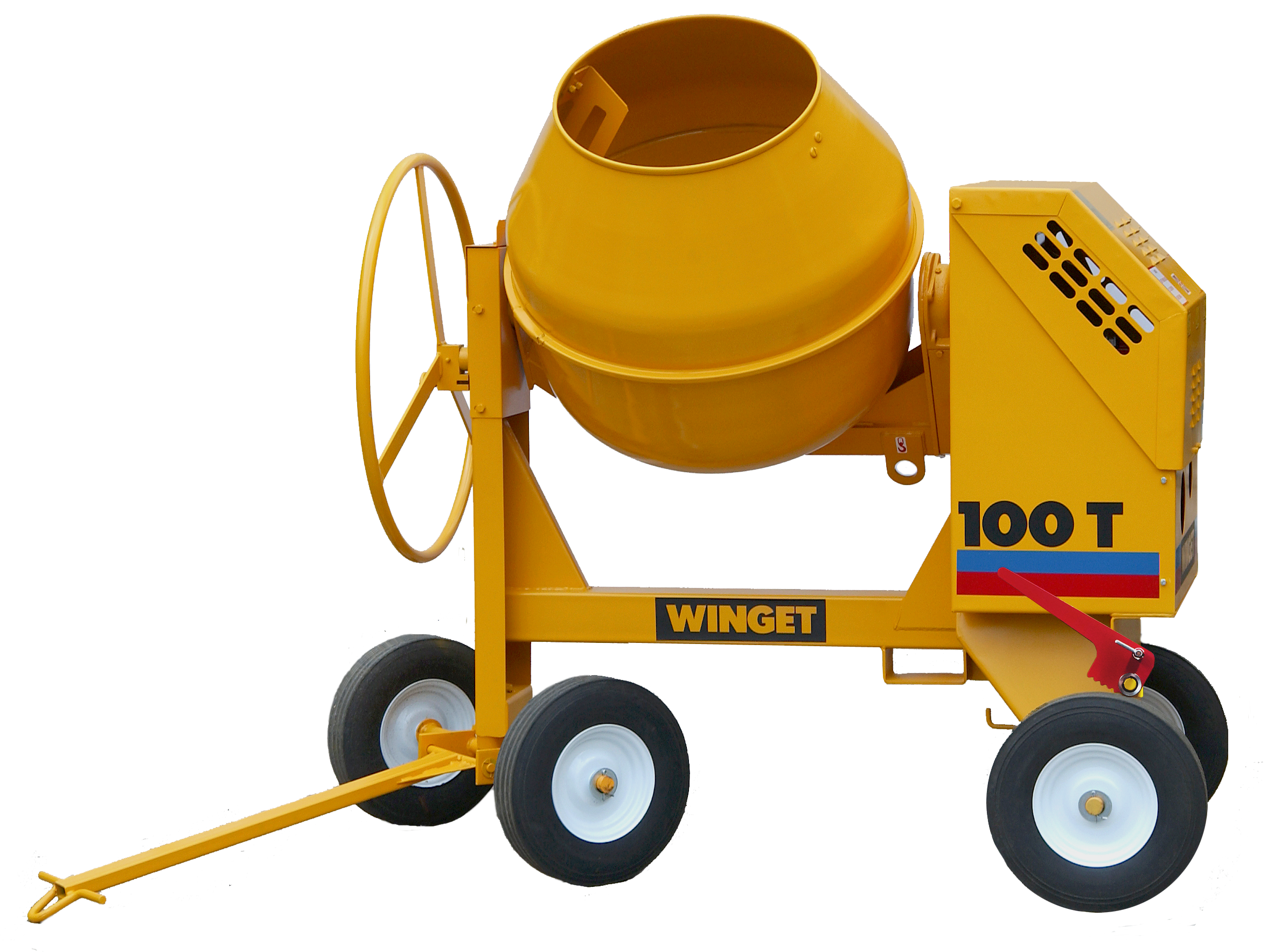

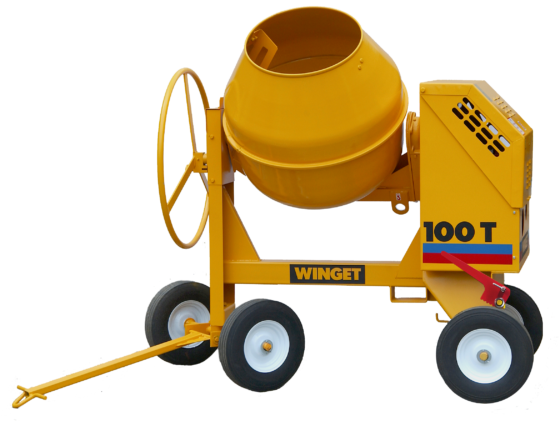

WINGET 100T
WINGET 100T ELECTRIC START FEATURE
WINGET 100T MIXER DRIVE SYSTEM
INSIDE OF WINGET 100T CAST DRUM
WINGET HAND FED MIXERS ADJUSTABLE DRIVE SYSTEM EXTERIOR
WINGET 100T TOWBAR
WINGET 100T RECOIL START FEATURE
WINGET 100T HAND FED MIXERS LIFTING EYE HOOK
WINGET 100T LARGE HAND WHEEL EXTERIOR
WINGET 100T INTERNAL MIXING BLADES
WINGET 100T PINION AND CAST
WINGET 100T LIFTING AND TOWBAR HOOK
WINGET 100T - Image 13

WINGET 100T

Enquire

CAPACITIES:
Mixed Batch Output 100 Litres
Unmixed Capacity 150 Litres
Gross Drum Volume 263 Litres
Drum Speed 22 rev/min
Production Rate 1.2m3/hr
ENGINE:
Yanmar L48 Electric start
DIMENSIONS:
Length o/a 1.55m
Width o/a 0.82m
Height o/a 1.57m
Discharge Height 0.54m
Loading Height 1.00m
Machine Weight 340kg
Category:
