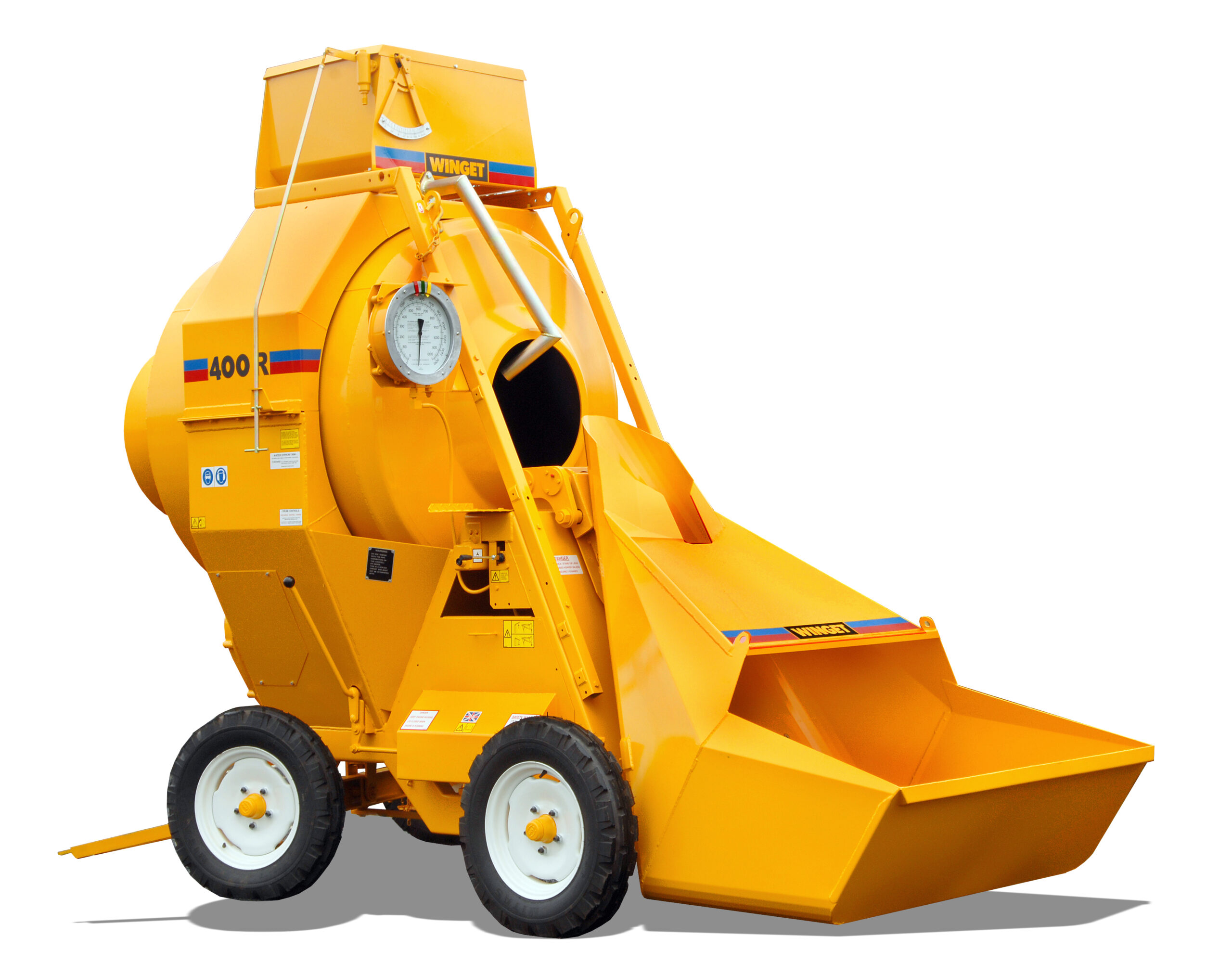

WINGET 400R MIXER WITH ATTACHMENT

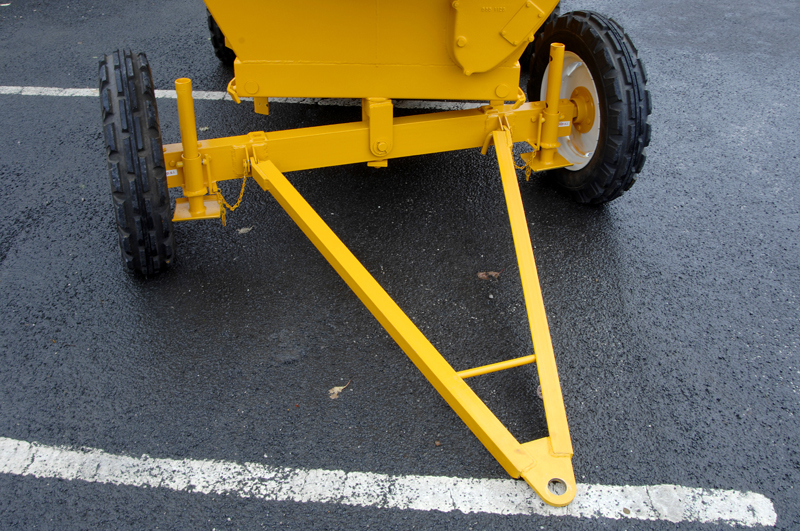

WINGET R RANGE MIXER WITH TOWBAR

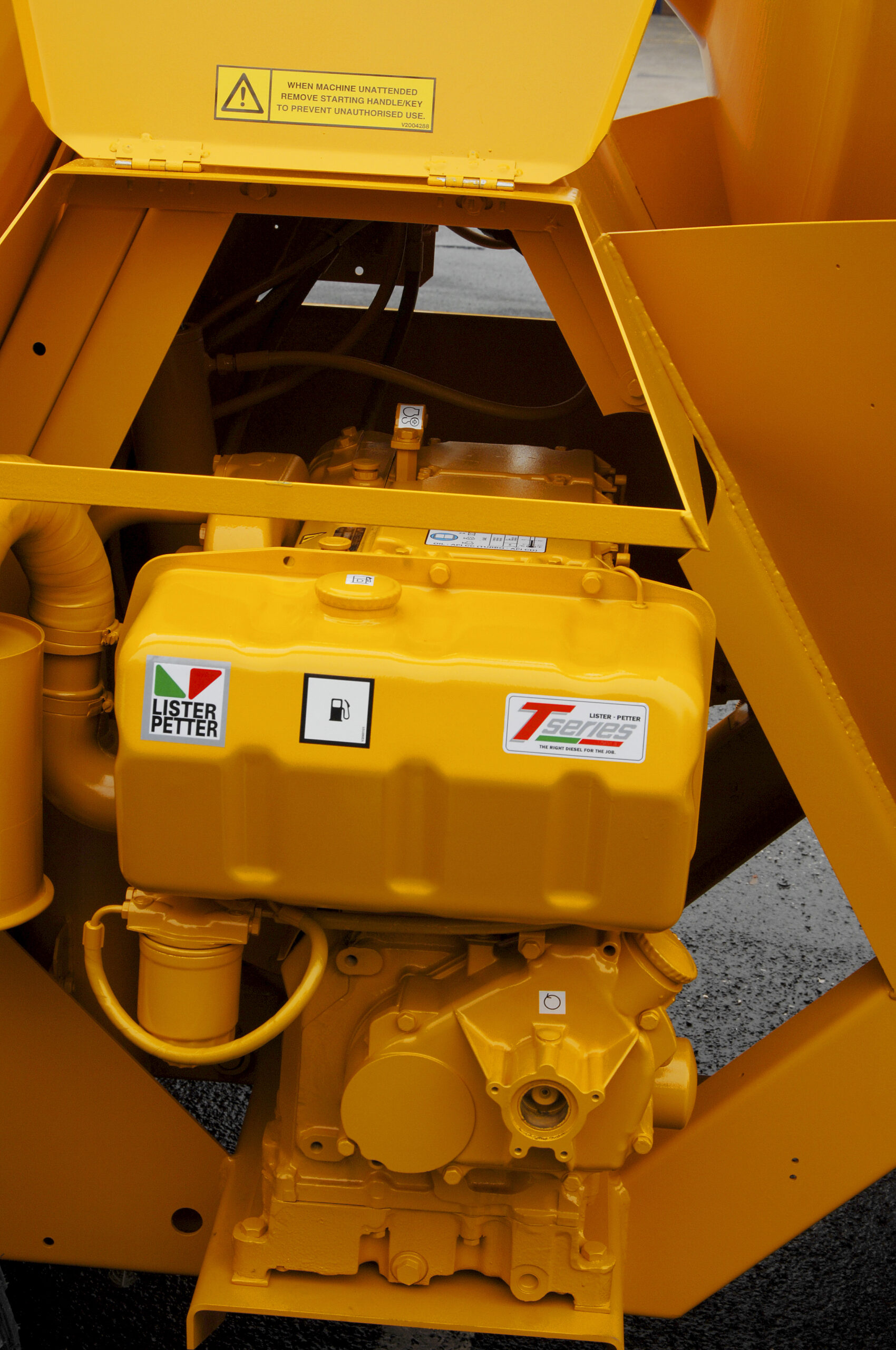

WINGET R RANGE MIXER LISTER PETTER ENGINE

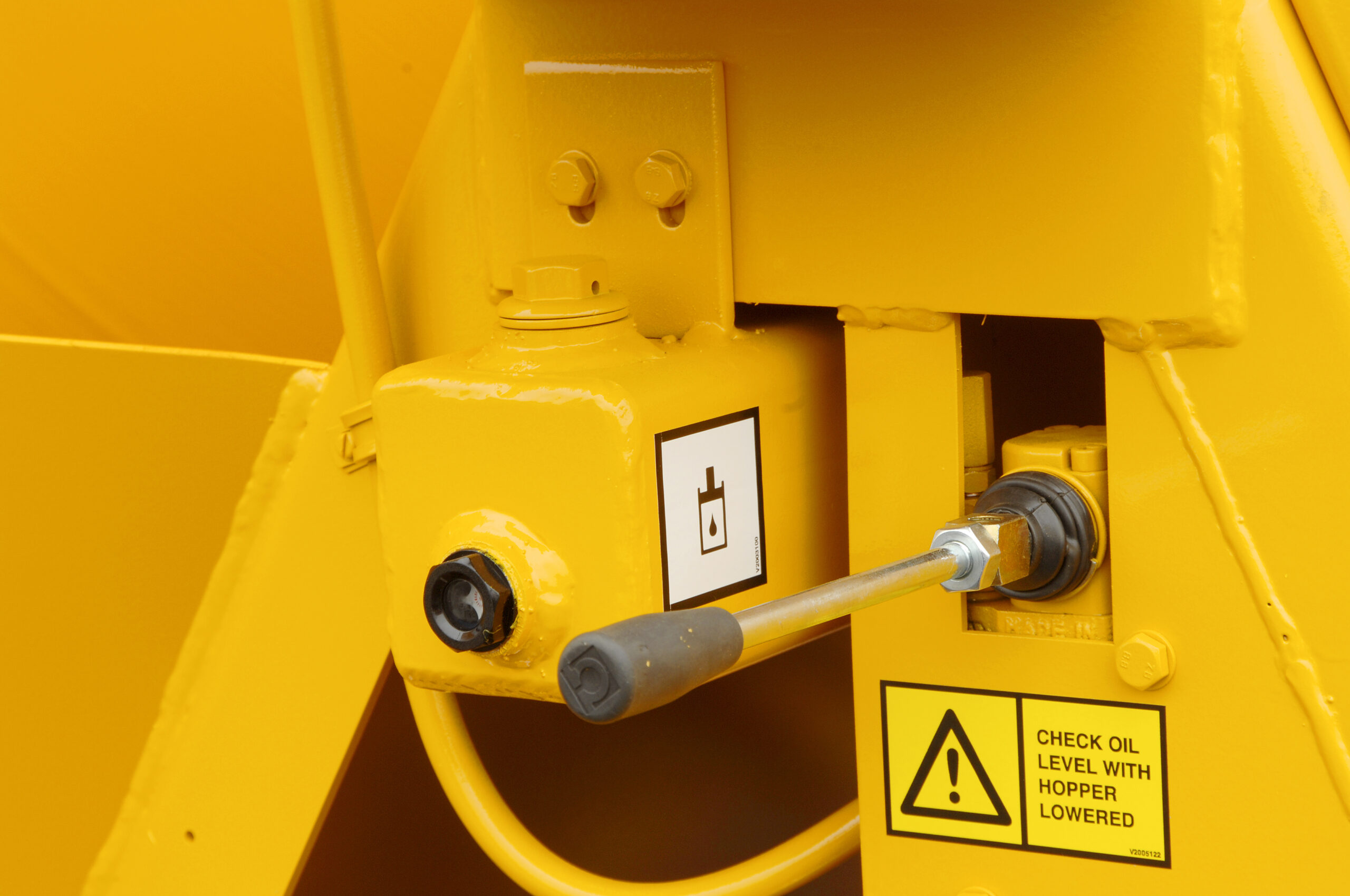

WINGET R RANGE MIXER FEED HOPPER OPERATING LEVER

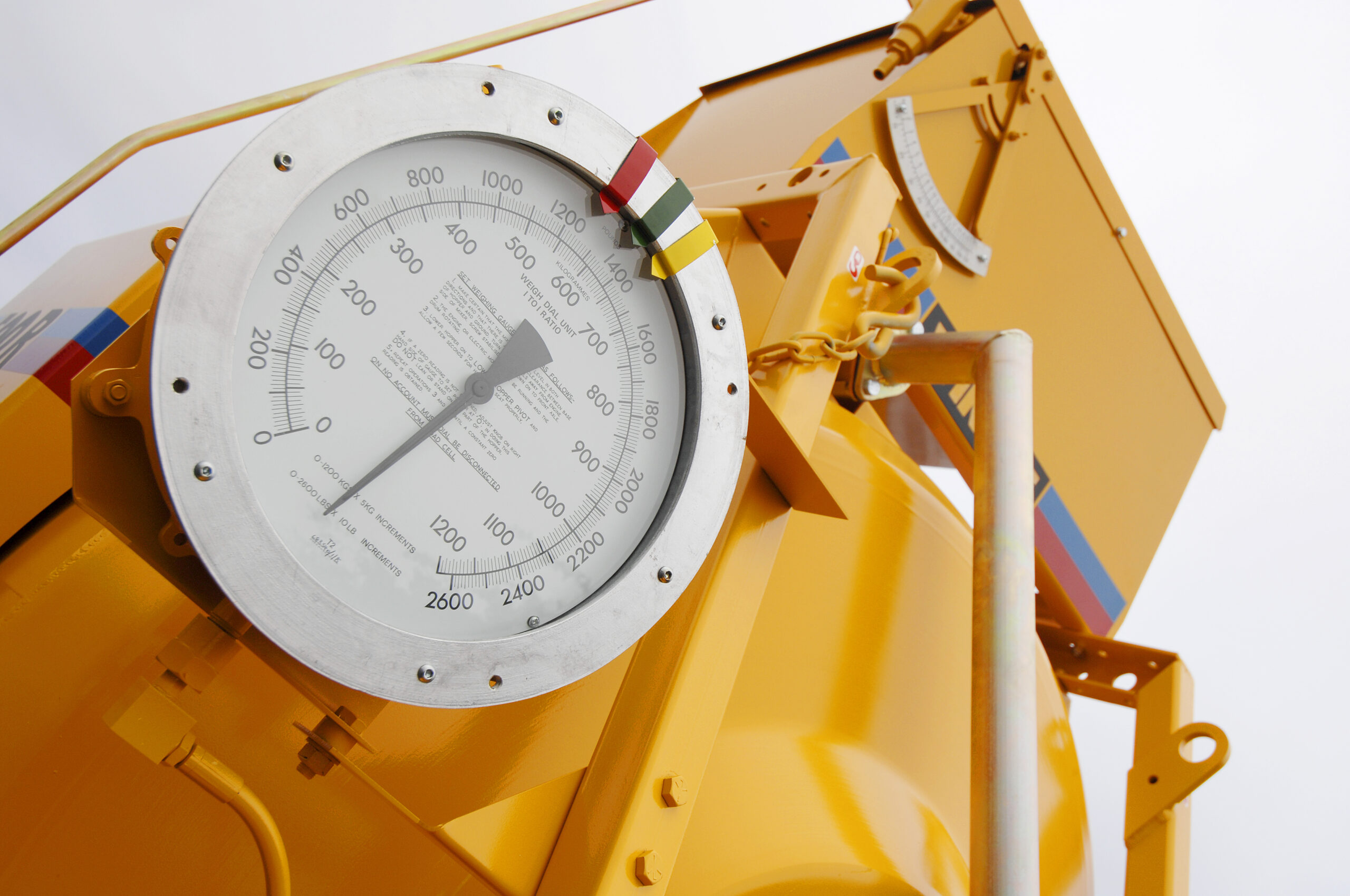

WINGET R RANGE MIXER BATCHWEIGHER

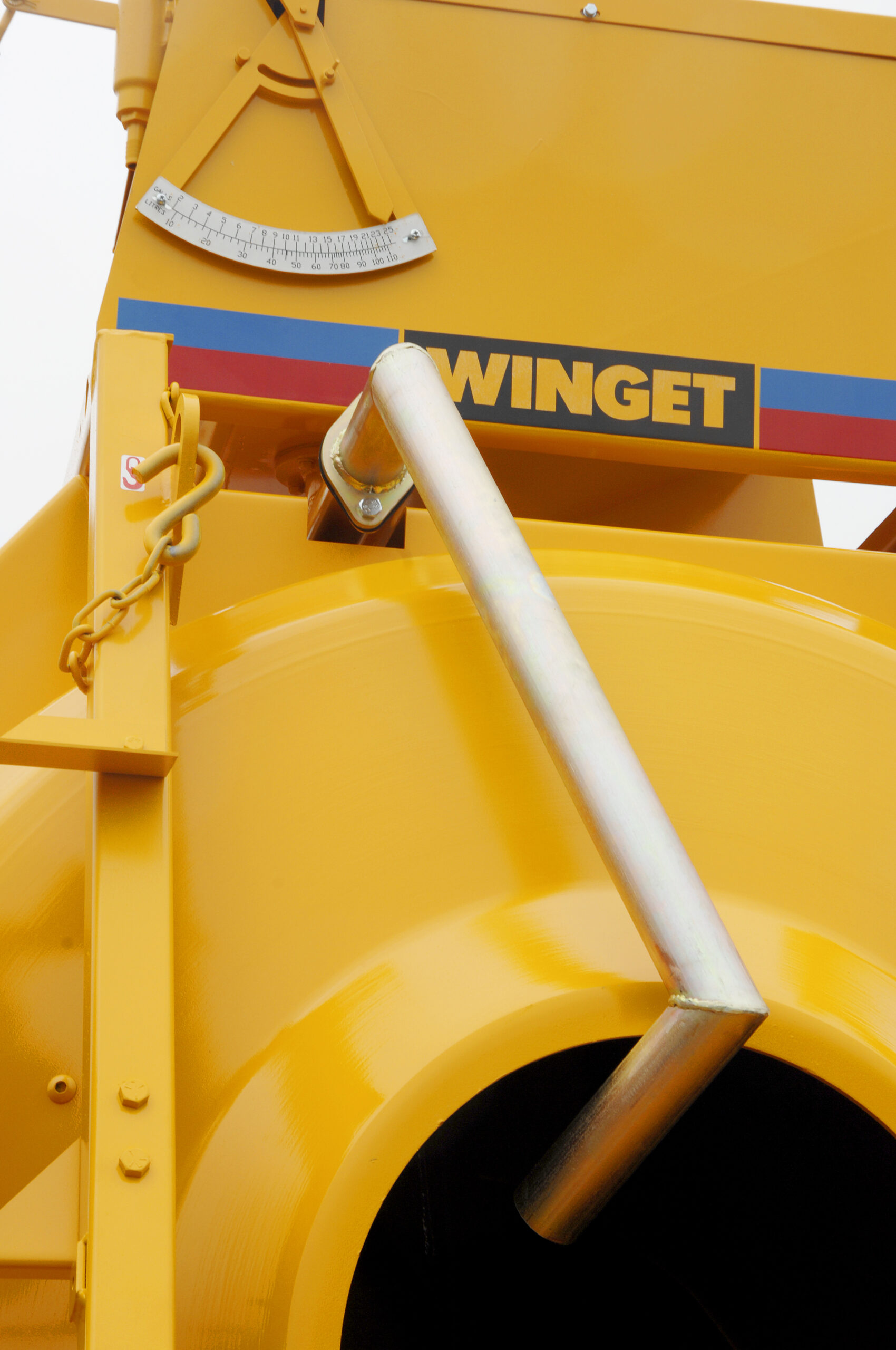

WINGET R RANGE MIXER WATER FEED PIPE

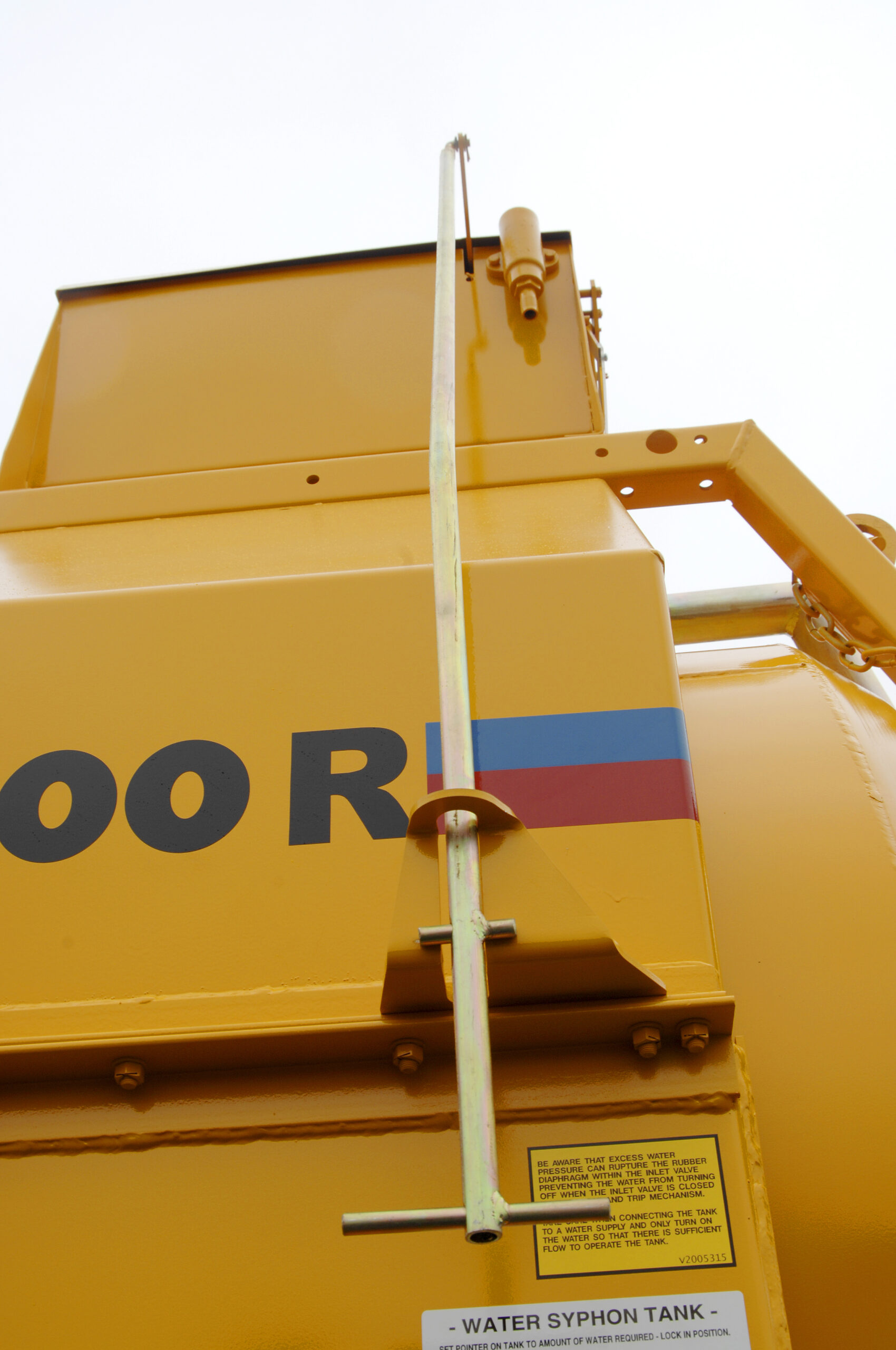

WINGET R RANGE MIXER WATER FEED WITH OPERATING LEVER

WINGET 400R DIESEL

Enquire

CAPACITIES:
Mixed Batch Output 400 Litres
Unmixed Capacity 600 Litres
Gross Drum Volume 2100 Litres
Drum Speed 14 rev/min
Production Rate 9.6m3/hr
Dragline Shovel Capacity 140 Litres
ENGINE:
Lister Petter TR2 Hand start (electric start optional)17.6hp
DIMENSIONS:
Length o/a hopper down 3.71m
Width o/a 1.82m
Hopper Width 1.50m
Height to top water tank 3.14m
Height to top dragline feeder jib 4.88m
Discharge Height 1.37m
Height – hopper raised 3.77m
Ground Clearance – hopper 0.10m
Hopper loading height 0.52m
Machine Weight 2420kg
